BRAND: Russound

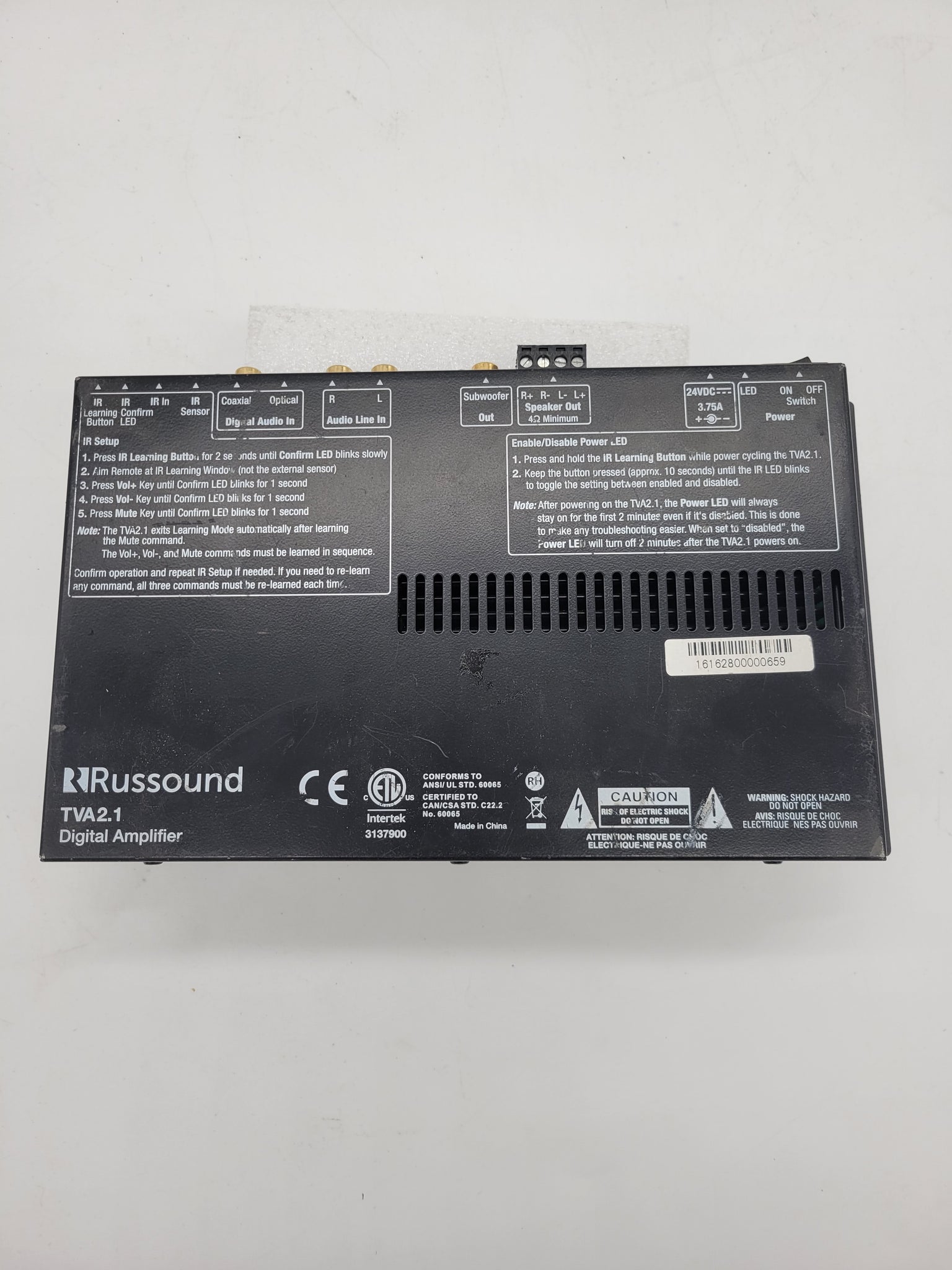

MODEL: TVA2.1 Digital Two-Channel TV Amplifier with IR Learning and Sub Out
COLOR: BLACK
CONDITION: USED - PULLED FROM WORKING ENVIRONMENT
UNIT ON LY - NO POWER SUPPLY
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
“R2V3 Functionality and Cosmetic rating is F3/C4 for this product, Key functions working and used good condition.”
Its thin footprint means the TVA2.1 can be hidden behind the television or mounted in an in-wall panel behind a television for convenience. The built-in IR learning function eliminates the need for an external control system. This can dramatically reduce the cost of adding additional rooms of audio to a home and keeps the operation simple and intuitive for the homeowner by letting them use their current remote control device.
The TVA2.1 features three input options for flexibility. A traditional analog RCA line level input, and both Digital Coax and Optical S/PDIF. The TVA2.1 supports up to 24bit/96khz digital audio in a PCM stereo format.
- Class-D amplifier 2 x 30W RMS into 8ohm
- 24-bit/96kHz S-PDIF support

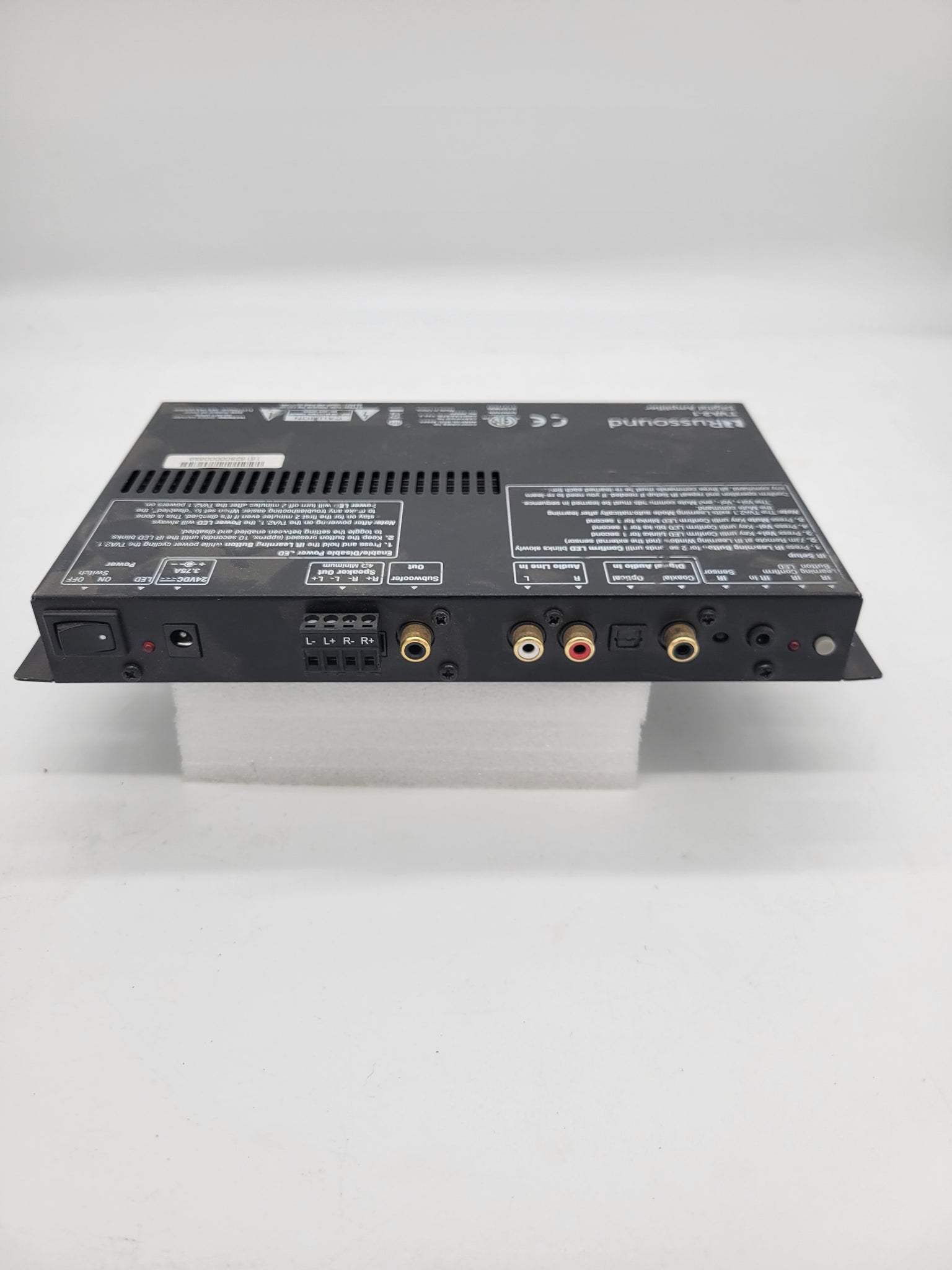

- S-PDIF, Optical and Analog Line Level inputs
- 4-pole Speaker Detachable Screw connector and line level Subwoofer output

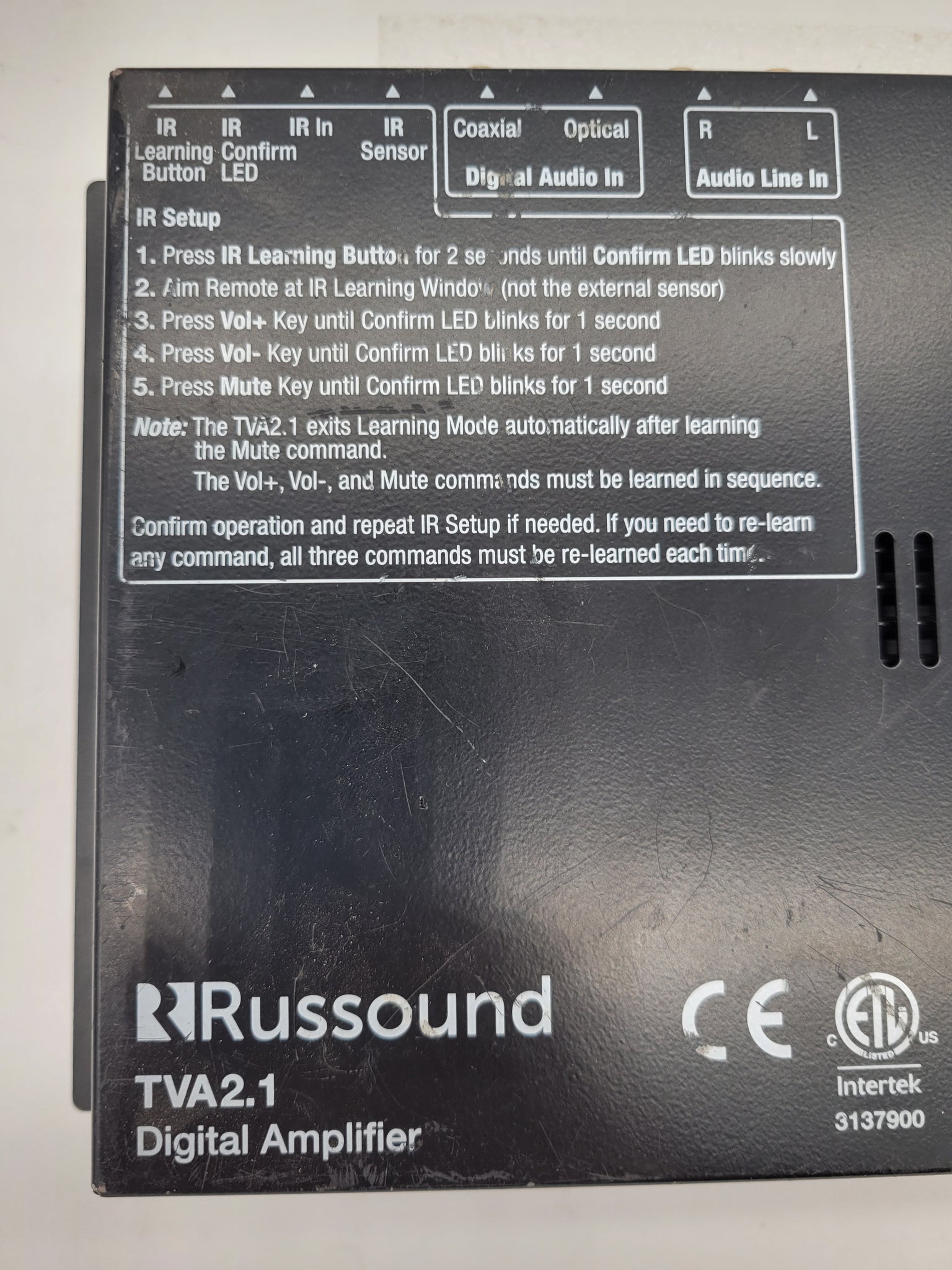

- IR Learning for basic volume control. IR remote control support
- Small Footprint with mounting options for discreet installation
-
Shipping Dimensions:
11.6" (W) x 5.0" (H) x 7.5" (D)
(29.5 x 12.7 x 19.1 cm) - Shipping Weight: 2.0 lbs (0.9 kg)
- Amplified Channels: 2
- Frequency Response: 40Hz to 20KHz +/- 1dB, 20Hz -3dB, Sub Out: -3dB at 170Hz
- Input Impedance: 22K
- Line Output: Subwoofer
-
Power Output: Continuous Stereo:
30 watts per channel at 8 ohms <1% THD+N - Power Requirement(s): 27 VDC 4.0A (External D235PS Power Supply)
- Signal to Noise Ratio: >90dB 20Hz to 20KHz
- Total Harmonic Distortion: 1% (1KHz @ 1W)
