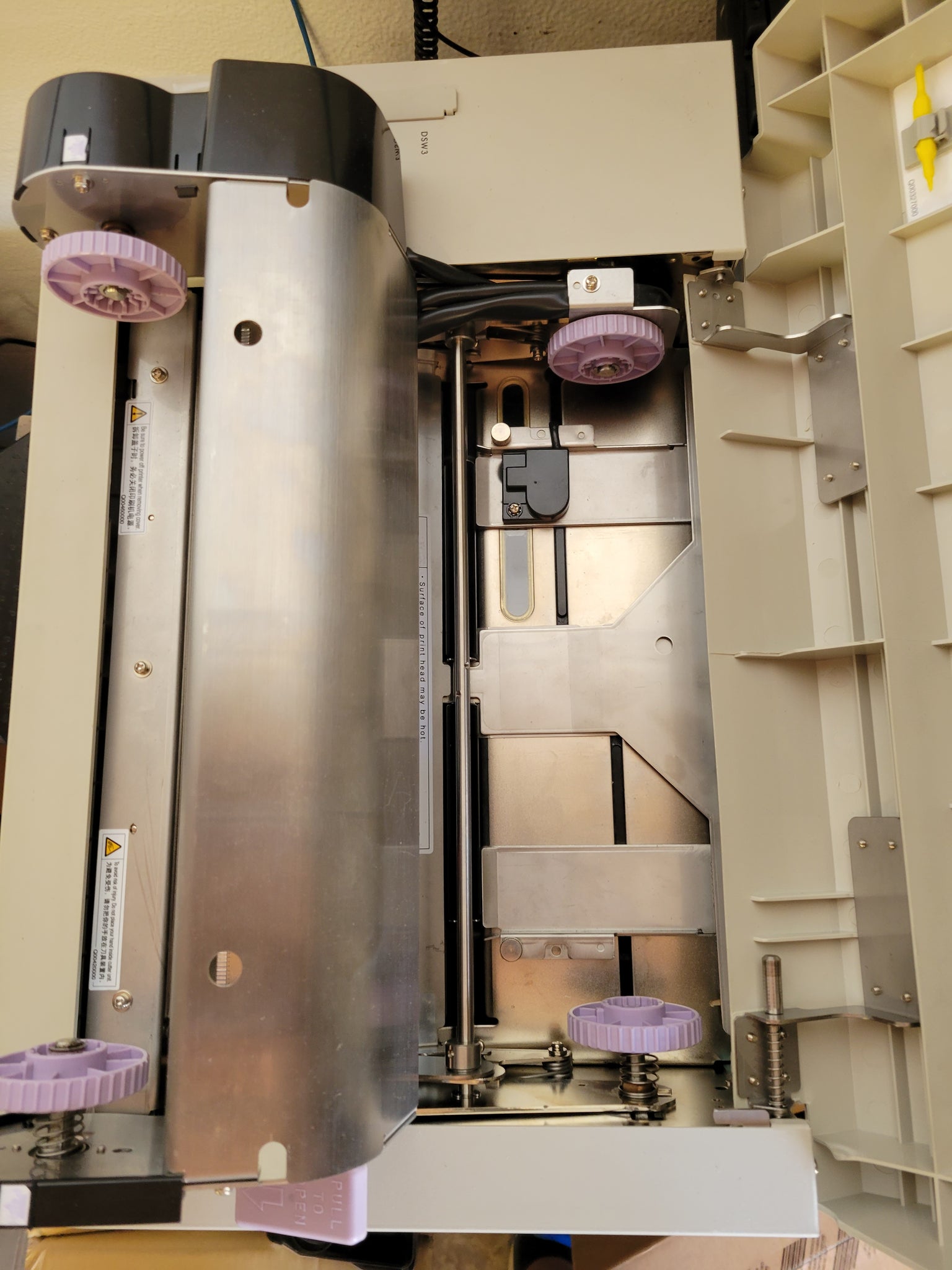

BRAND: SATO
MODEL: M10E TT THERMAL BARCODE PRINTER

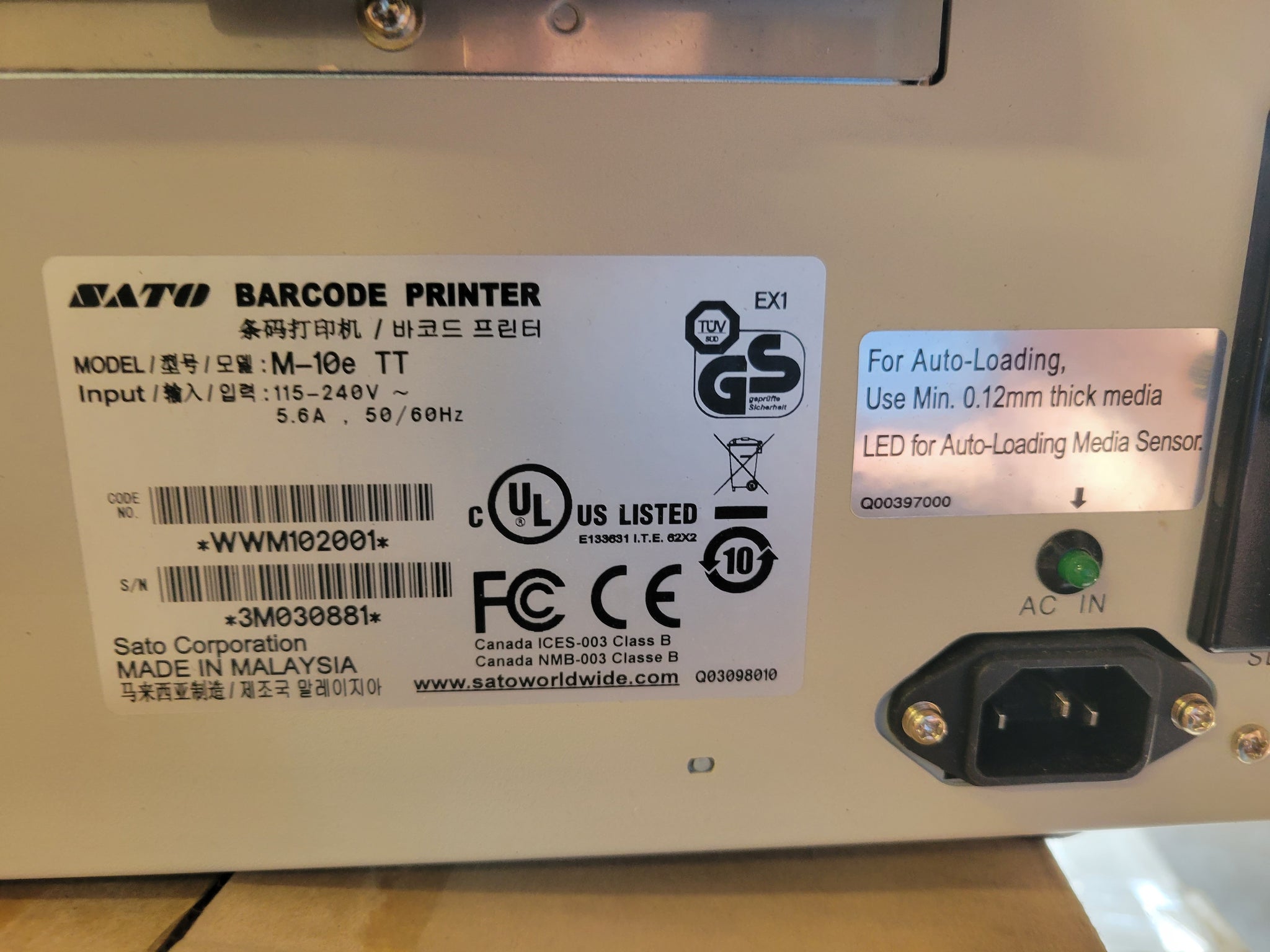

CODE NO.: WWM102001
CONDITION: USED - TESTED
GREAT CONDITION OVER ALL
IN ORIGINAL SATO BOX
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.

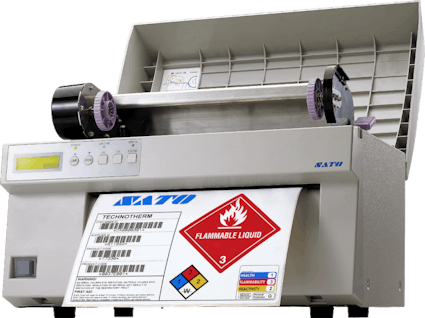

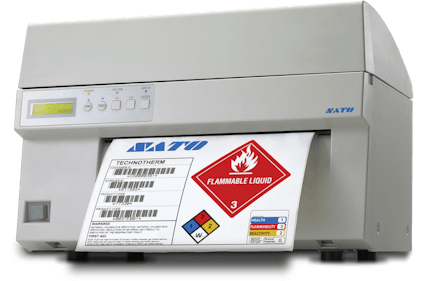

SATO’s M10e was designed with manufacturing applications in mind. This barcode printer creates labels up to a full 11.8 inches wide at a speed of up to five inches per second.
Streamlined Features
• Large Format Industrial Printer
• Industry-Leading Throughput
• Media Up to 11.8 inches Wide
• Thermal Transfer Wrinkle-Free Operation
• Wide Range of Plug-in Interface Options
Industry Verticals • Aerospace • Forestry • Hazmat • Logistics • Manufacturing • Petro Chemical
Industry Applications
• Chemical Labeling
• Automotive Labeling
• Paper/Pulp Labeling
• ODETTE Labeling
• Shipping & Receiving
• Multiple-Up Labels
MODEL M10e
PRINT SPECIFICATIONS Print Method Thermal Transfer/Direct Thermal Print Resolution 305 dpi (12 dots/mm) Print Speed 5 ips (127 mm/s) Maximum Print Area 10.5" (266 mm) W x 16.5" (420 mm) L
MEDIA SPECIFICATIONS
Sensor Type Adjustable transmissive sensor for gap. Reflective sensor for black mark. Automatic, programmable setting of top of form. Ribbon-out / low Sensor, Head Up, Paper Out, Cutter Open Automatic media loading and top of form synchronization. Media Type Fan-fold (standard) or roll-fed (with optional unwinder), die-cut or continuous direct thermal (thermal transfer) labels, synthetics, and tag stock with or without black mark, gap, or notch. Media Size Width 5.16" (131 mm) - 11.8" (300 mm) Length 1.7" (43 mm) - 19.7" (500 mm) Media Roll Size Outer Diameter Maximum 8.6" (220 mm) with optional unwinder Thickness Maximum 0.008" (0.20 mm) Wind Face In
FONT/BARCODE SYMBOLOGIES
Fonts Bitmap - 12 proportional, mono-spaced and outline fonts (Code table 858). Scalable Internal CG Triumvirate® & CG Times® fonts. Optional Downloaded TrueType® fonts, scalable from 8 to 72 points. Barcode Linear UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, Code 128, Codabar, MSI, Bookland, Industrial 2/5, Interleaved 2/5, Matrix 2/5, Postnet™, GS1-128, GS1-DataBar™ 2-D PDF417, Micro PDF417, Truncated PDF417, Maxicode™, Data Matrix, QR Code, Composite Symbology Formatting 360° rotation of barcodes and text, character expansion horizontally and vertically, sequential numbering, form overlay for high-speed editing of complex formats
MEMORY
Memory Standard 16 MB RAM Flash 6 MB (4 MB available to download forms and fonts) Optional 1 MB or 256 K PCMCIA Processor 32-BIT RISC
COMMUNICATION INTERFACE
Plug-in Interface Serial - RS232 (up to 57.6k bps), Parallel - IEEE1284 (ECP), Ethernet - 10/100BaseT, Twinax/Coax Adapter, RS422/485, USB
SUPPORT
Graphic Printing & storage of .PCX, .BMP format, SATO Hex/binary, Page Mode, Line Print Mode, and Reverse Image Software Windows® Drivers, Printer Utilities
OPERATING CHARACTERISTICS
Power Requirements 100-240 VAC +/- 10%, 60 Hz Auto Switching Environment Operating 41° to 104°F (5° to 40°C), 30 to 80% RH Non-Condensing Storage 23° to 140°F (-5° to 60°C), 30 to 90% RH Non-Condensing EDS 8kV Dimensions (W x D x H) 18.7" (475 mm) W x 12.3" (313 mm ) D x 12.6" (319 mm) H Weight 50.7 lbs (23 kg) Agency Certifications Agency Certifications: CE, UL, CSA, TÜV
OPTIONAL FEATURES Memory Expansion, Label Cutter, Real Time Clock, Media Unwind, Media Stacker, Interface Plug-In Modules
