RUCKUS - T300 Outdoor 802.11ac 2x2:2 Wi-Fi Access Point

Load image into Gallery viewer, RUCKUS - T300 Outdoor 802.11ac 2x2:2 Wi-Fi Access Point

RUCKUS - T300 Outdoor 802.11ac 2x2:2 Wi-Fi Access Point

Regular price: $149.95
Sale price: $149.95
Regular price
Unit price: per

Shipping calculated at checkout.

BRAND: RUCKUS

CONDITION: USED - TESTED WORKS AS EXPECTED

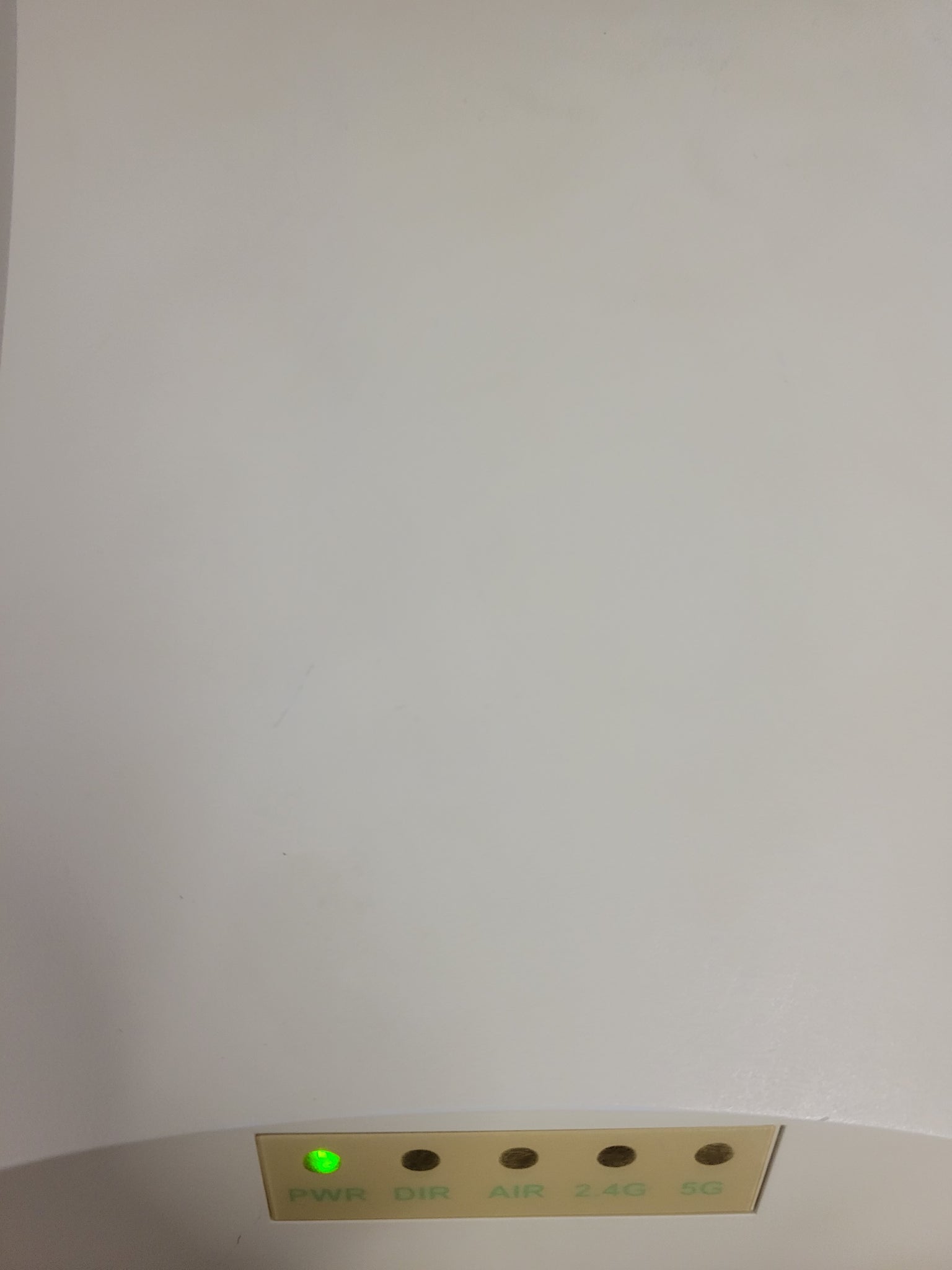

POWERS ON (SEE PHOTO)

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.

MODEL: T-300

The ZoneFlex T300, a dual-band 802.11ac outdoor access point (AP), is designed explicitly for high density public venues such as airports, conventions centers, plazas & malls, and other dense urban environments.

Designed for easy installation within an ultra-lightweight and low profile enclosure, the T300 is ideal for venue owners and enterprises looking to quickly and economically deploy Wi-Fi in high-capacity environments.

WI-FI
Wi-Fi Standards	IEEE 802.11a/b/g/n/ac
Supported Rates	802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS=1 to 2 for VHT20/40/80) 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15) 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps 802.11b: 11, 5.5, 2 and 1 Mbps
Supported Channels	2.4GHz: 1-13 5GHz: 36-64, 100-144, 149-165
MIMO	2x2 SU-MIMO
Spatial Streams	2 SU-MIMO
Radio Chains and Streams	2x2:2
Channelization	20, 40, 80MHz
Security	WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK WIPS/WIDS
Other Wi-Fi Features	WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v Hotspot Hotspot 2.0 Captive Portal WISPr

RF
Antenna Type	BeamFlex+ adaptive antennas with polarization diversity Adaptive antenna that provides 64 unique antenna patterns per chain
Antenna Gain (max)	Up to 3dBi
Peak Transmit Power (aggregate across MIMO chains)	2.4GHz: 26dBm 5GHz: 25dBm
BeamFlex+ SINR Transmit Power Gain1	Up to 6 dB
BeamFlex+ SINR Receive Power Gain1	Up to 4 dB
Minimum Receive Sensitivity2	-100dBm for 2.4GHz -94dBm for 5GHz
Frequency Bands	ISM (2.4-2.484GHz) U-NII-1 (5.15-5.25GHz) U-NII-2A (5.25-5.35GHz) U-NII-2C (5.47-5.725GHz) U-NII-3 (5.725-5.85GHz)

2.4GHZ RECEIVE SENSITIVITY
HT20		HT40
MCS0	MCS7	MCS0	MCS7
-92	-76	-89	-73

5GHZ RECEIVE SENSITIVITY
VHT20		VHT40		VHT80
MCS0	MCS7	MCS0	MCS7	MCS0	MCS7
-95	-76	-92	-74	-90	-69

2.4GHZ TX POWER TARGET
Rate	Pout (dBm)
MCS0 HT20	26
MCS7 HT20	20
MCS0 HT40	26
MCS7 HT40	18

5GHZ TX POWER TARGET
Rate	Pout (dBm)
MCS0 VHT20	25
MCS7 VHT20	19
MCS0 VHT40, VHT80	25
MCS7 VHT40, VHT80	21

PERFORMANCE AND CAPACITY
Peak PHY Rates	2.4GHz: 300Mbps 5GHz: 867Mbps
Client Capacity	Up to 512 clients per AP
SSID	Up to 43 per AP

RUCKUS RADIO MANAGEMENT
Antenna Optimization	BeamFlex+ Polarization Diversity with Maximal Ratio Combining (PD-MRC)
Wi-Fi Channel Management	ChannelFly Background Scan Based
Client Density Management	Adaptive Band Balancing Client Load Balancing Airtime Fairness Airtime-based WLAN Prioritization
SmartCast Quality of Service	QoS-based scheduling Directed Multicast L2/L3/L4 ACLs
Mobility	SmartRoam
Diagnostic Tools	Spectrum Analysis SpeedFlex

NETWORKING
Controller Platform Support	SmartZone ZoneDirector Unleashed3 Cloud Wi-Fi Standalone
Mesh	SmartMesh™ wireless meshing technology. Self-healing Mesh
IP	IPv4, IPv6
VLAN	802.1Q (1 per BSSID or dynamic per use based on RADIUS) VLAN Pooling Port-based
802.1x	Authenticator & Supplicant
Tunnel	L2TP, GRE, Soft-GRE
Policy Management Tools	Application Recognition and Control Access Control Lists Device Fingerprinting Rate Limiting

PHYSICAL INTERFACES
Ethernet	1 x 1GbE port, RJ-45

PHYSICAL CHARACTERISTICS
Physical Size	23.9(L) x 19.5(W) x 11.0(H) cm 9.4(L) x 7.5(W) x 4.3(H) in
Weight	2.1 lbs (1 kg) with bracket 2 lbs (0.9 kg) without bracket
Ingress Protection	IP-67
Mounting	Wall Pole Mount 1” to 2.5” diameter
Physical Security	Hidden latching mechanism Kensington lock T-bar Torx
Operating Temperature	-20ºC (-4ºF) to 65ºC (149ºF)
Operating Humidity	Up to 95%, non-condensing
Wind Survivability	Up to 266 km/h (165 mph)

POWER4
Power Supply	Max Power Consumption
802.3af PoE Input (Class 3PD)	11W

CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance5	Wi-Fi CERTIFIED™ a, b, g, n, ac Passpoint®, Vantage
Standards Compliance6	EN 60950-1 Safety EN 60601-1-2 Medical EN 61000-4-2/3/5 Immunity EN 50121-1 Railway EMC EN 50121-4 Railway Immunity IEC 61373 Railway Shock & Vibration UL 2043 Plenum EN 62311 Human Safety/RF Exposure WEEE & RoHS ISTA 2A Transportation

SOFTWARE AND SERVICES
Location Based Services	SPoT
Network Analytics	SmartCell Insight (SCI)
Security and Policy	Cloudpath

ORDERING INFORMATION
901-T300-XX01(XX = US, WW)^*	T300, omni, outdoor access point, 802.11ac 2x2:2 internal BeamFlex+ adaptive antenna technology, dual band concurrent, one Ethernet port, PoE input, includes mounting bracket and one year warranty. Does not include PoE injector.
901-T300-XX-81(XX = US, WW)^**	T300e, outdoor access point, 802.11ac 2x2:2 internal BeamFlex+ adaptive antenna technology 2GHz & 5GHz, external 5GHz N-female, dual band concurrent, one ethernet port, PoE input, includes mounting bracket and one year warranty. Does not include PoE injector or external 5GHz antenna.

See Ruckus price list for country-specific ordering information.

^*Requires ZoneDirector 9.8.1, SCG 2.5.1 or vSCG 3.0 or greater.

OPTIONAL ACCESSORIES
902-0162-XXYY	PoE injector (24W) (Sold in quantities of 1, 10 or 100)
902-0183-0000	Spare Weatherizing Cable Gland with 1 hole
902-0125-0000	Secure articulating mounting bracket
902-0182-0003	Spare, Outdoor Mounting Bracket, AnyAngle
911-2101-DP01	5 GHz dual polarized high gain 21dBi directional antenna
911-2401-DP01	5 GHz dual polarized high gain 24dBi directional antenna
