RTI AD-4x Audio Distribution System USED- TESTED WITH POWER SUPPLY

Regular price
$225.00
Sale price
$225.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

BRAND: RTI

CONDITION: USED-TESTED WORKS AS EXPECTED

COMES WITH POWER CORD

Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.

MODEL: AD-4X Audio Distribution System



Let the music move you with the AD-4x audio distribution system from RTI. Go to the exercise room to summon your favorite stream, listen to broadcast radio in the kitchen, internet radio in the backyard, and a CD in the living room - all at the same time. This compact audio distribution system contains both a matrix switching pre-amp and a built-in power amplifier. The four local source inputs can be augmented with four remote source inputs, making it easy to listen to music from any source in any room.

The second generation of the AD-4 audio distribution system, the AD-4x has added powerful new features, providing more flexibility and quicker installations. Now with pre-outs for each zone, a separate amplifier may be added for additional power and speakers where needed. The addition of Ethernet support allows two-way control via the LAN, while a web interface allows the AD-4x output zones to be tested during installation via a web browser on a smartphone, tablet or PC. This web interface is also used to configure output zones into groups, allowing them to be controlled as a single zone.

The AD-4x audio distribution system is designed to be a seamless extension of an RTI control system. The AD-4x provides the audio switching, amplification and distribution functions, while RTI central processors and user interfaces manage the audio source control, user input and status feedback. Information such as the selected source, volume level, and tone control settings are available for each zone. Depending on the source equipment used, more advanced information such as song playlists, cover art, and tuner RDS data may also be available. Of course with RTI control systems, audio is just the beginning. Imagine every aspect of your environment working in complete harmony - from audio and video, to lighting, temperature and more. Such scenarios are only made possible from an audio distribution system backed by a real, professional grade control system. Thanks to the efficient engineering that defines the AD-4x, there is no reason to limit yourself to a system that was designed only for music; with RTI so much more is possible.

AC Input Voltage 115VAC or 240VAC (Switchable), 230W

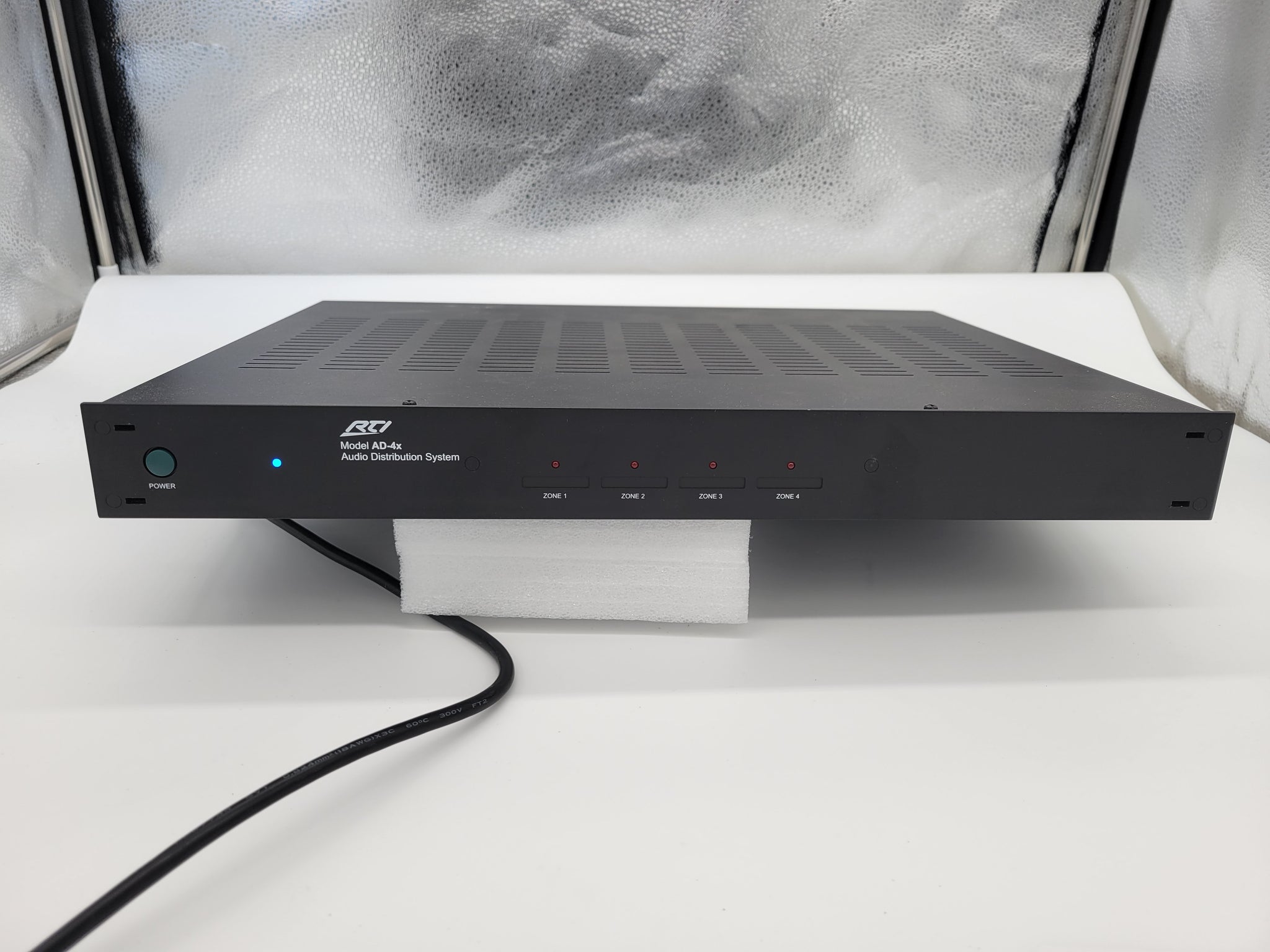

Power Switch Front Panel On/Off control with LED power indicator
Mounting Rack mount or free standing
Dimensions (HxWxD 2.1in(53mm) x 19in(482mm) x 13.3in(340mm)
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Weight 11lbs (5kg)

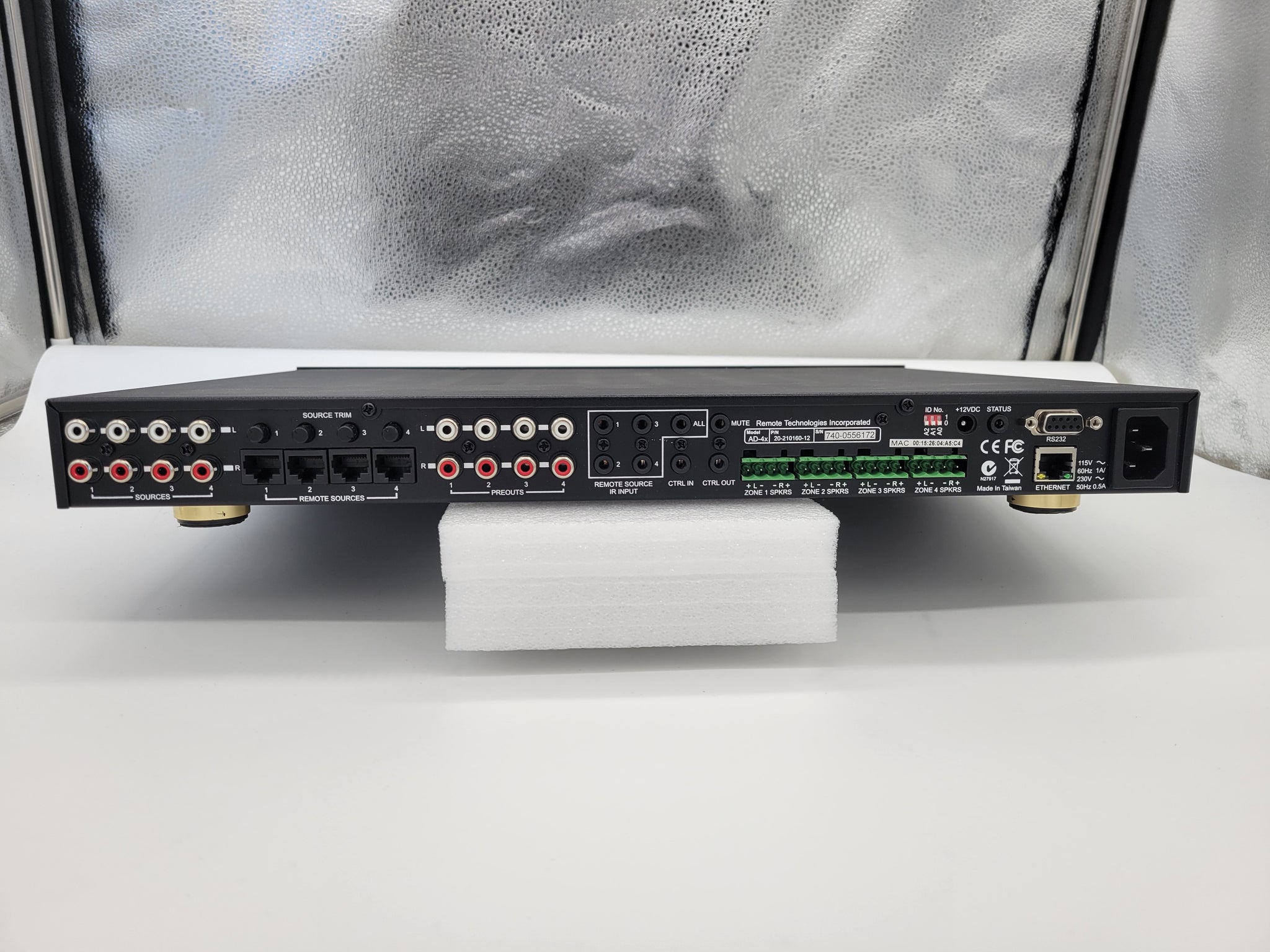

Local Input Source Four, RCA
Remote Input Mixed Source Four, RJ-45
CTRL In One, 3.5mm, for IR control
Remote Source IR One, 3.5mm x 4 sources, IR input
RS232 Port One, DB9 for Bidirectional Control
Ethernet Port One, RJ-45
Trigger Output One, 12VDC @ 15mA
Voltage Output One, 12VDC @ 500mA
Mute One, 3.5mm
Output Zones Four, Two channels each
Rated Power/Channel >20 Watts, 20Hz to 20KHz (RMS, 2 chan driven 8ohms)
Power/Channel >25 Watts @ 1KHz (RMS, 2 chan driven 8ohms)
Total Harmonic Distortion @20W/8ohm, .5%
Total Harmonic Distortion @1W/8ohm <.05%
S/N @ Rated Power, IEC A-wtd, Source Input shorted 92dB (mute +1)
Frequency Response 20Hz to 20KHz @1W/8ohm 1.5+/-.5dB
Input Overload 2.5V
Input Impedance >22KOhms
Channel Separation 1KHz >60dB
Crosstalk Between Sources @ Rated Power/1KHz >75dB
Crosstalk Between Zones @ Rated Power/1KHz 80dB
Treble Control @10KHz 10dB +/-.5dB
Bass Control @100Hz 10dB +/-.5dB
