BRAND: PALO ALTO

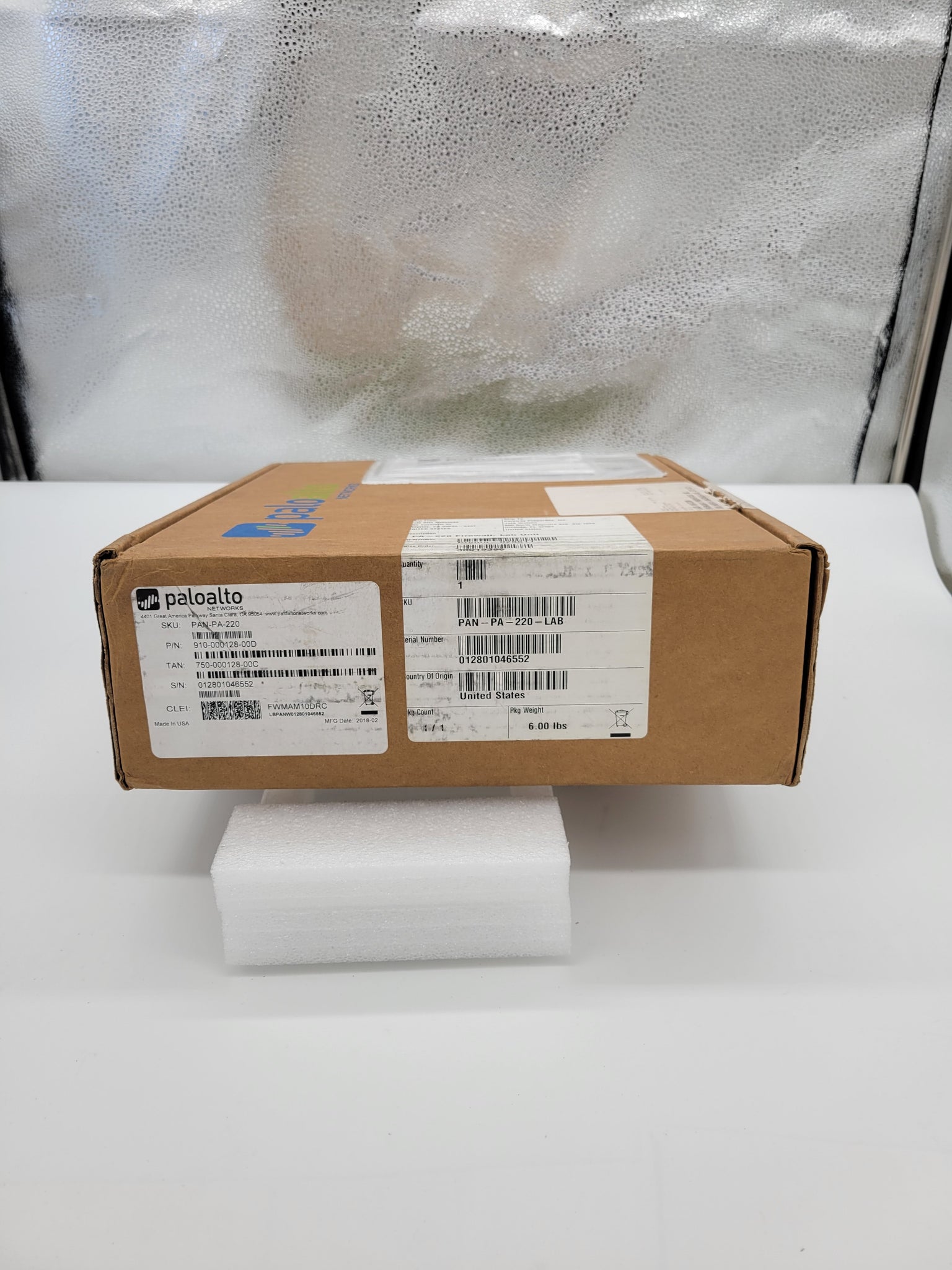

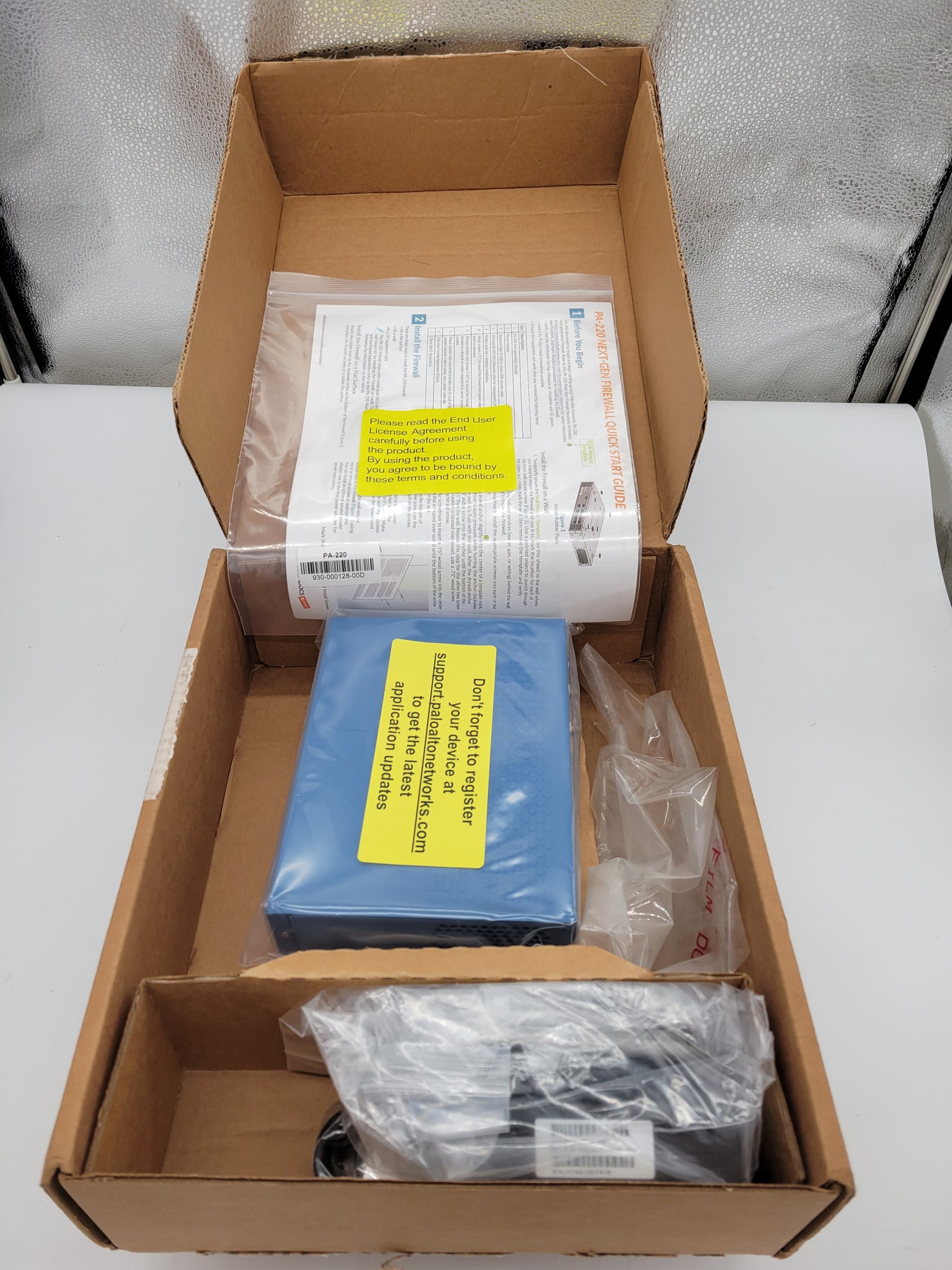

CONDITION: NEW IN OPEN BOX
New
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details.

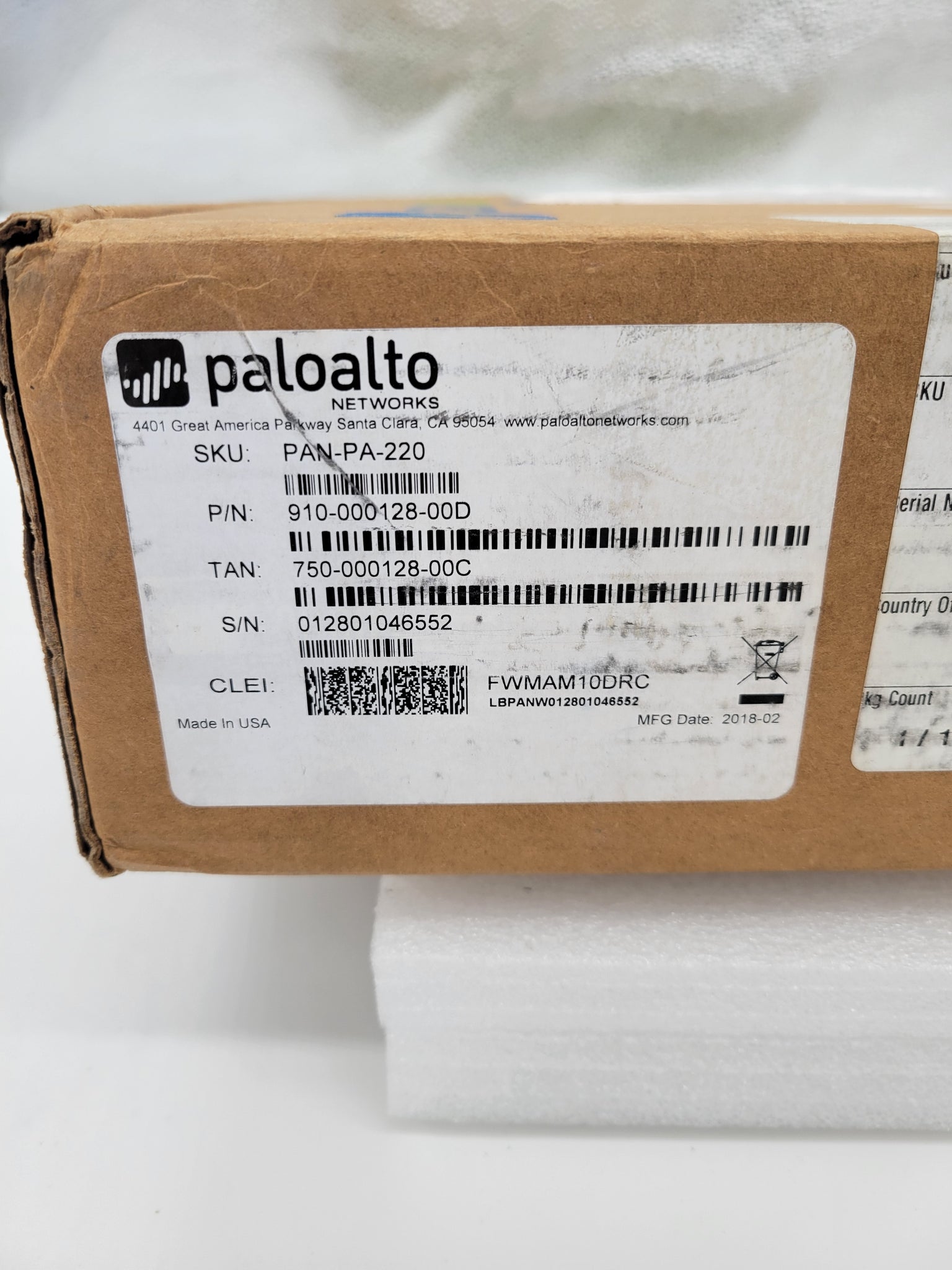

MODEL: PA-220

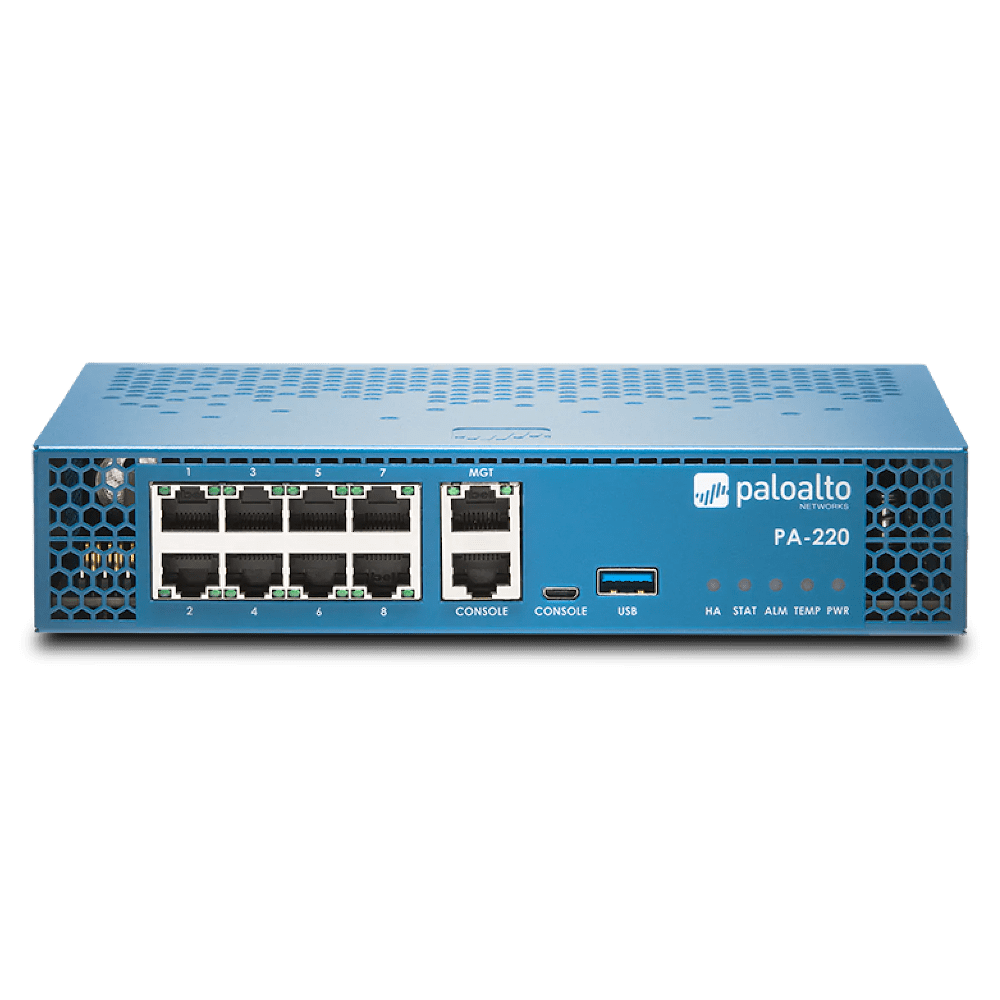

The Palo Alto Networks® PA-220 next-generation firewall is designed for small organizations or branch offices and includes the following main features: active/passive and active/active high availability (HA), passive cooling (no fans) to reduce noise and power consumption, eight Ethernet ports, and dual power adapters for power redundancy. The PA-220 firewall enables you to secure your organization through advanced visibility and control of applications, users, and content.
|
ITEM
|
COMPONENT
|
DESCRIPTION
|
|---|---|---|
|
1
|
Ethernet ports
|
Eight RJ-45 10/100/1000Mbps ports for network traffic.
You can set the link speed and duplex or choose auto-negotiate.
|
|
2
|
MGT port
|
Use this Ethernet 10/100/1000Mbps port to access the management web interface and perform administrative tasks. The firewall also uses this port for management services, such as retrieving licenses and updating threat and application signatures.
|
|
3
|
CONSOLE port
(RJ-45)
|
Use this port to connect a management computer to the firewall using a 9-pin serial to RJ-45 cable and terminal emulation software.
The console connection provides access to firewall boot messages, the Maintenance Recovery Tool (MRT), and the command line interface (CLI).
If your management computer does not have a serial port, use a USB-to-serial converter.
Use the following settings to configure your terminal emulation software to connect to the console port:
Data rate: 9600
Data bits: 8
Parity: none
Stop bits: 1
Flow control: None
|
|
4
|
CONSOLE port
(Micro USB)
|
Use this port to connect a management computer to the firewall using a standard Type-A USB-to-micro USB cable.
The console connection provides access to firewall boot messages, the Maintenance Recovery Tool (MRT), and the command line interface (CLI).
Refer to Micro USB Console Port for more information and to download the Windows driver or to learn how to connect from a Mac or Linux computer.
|
|
5
|
USB port
|
Use this port to bootstrap the firewall.
Bootstrapping enables you to provision the firewall with a specific PAN-OS configuration and then license it and make it operational on your network.
|
|
6
|
LED status indicators
|
Five LEDs that indicate the status of the firewall hardware components (see Interpret the LEDs on a PA-220 Firewall).
|
