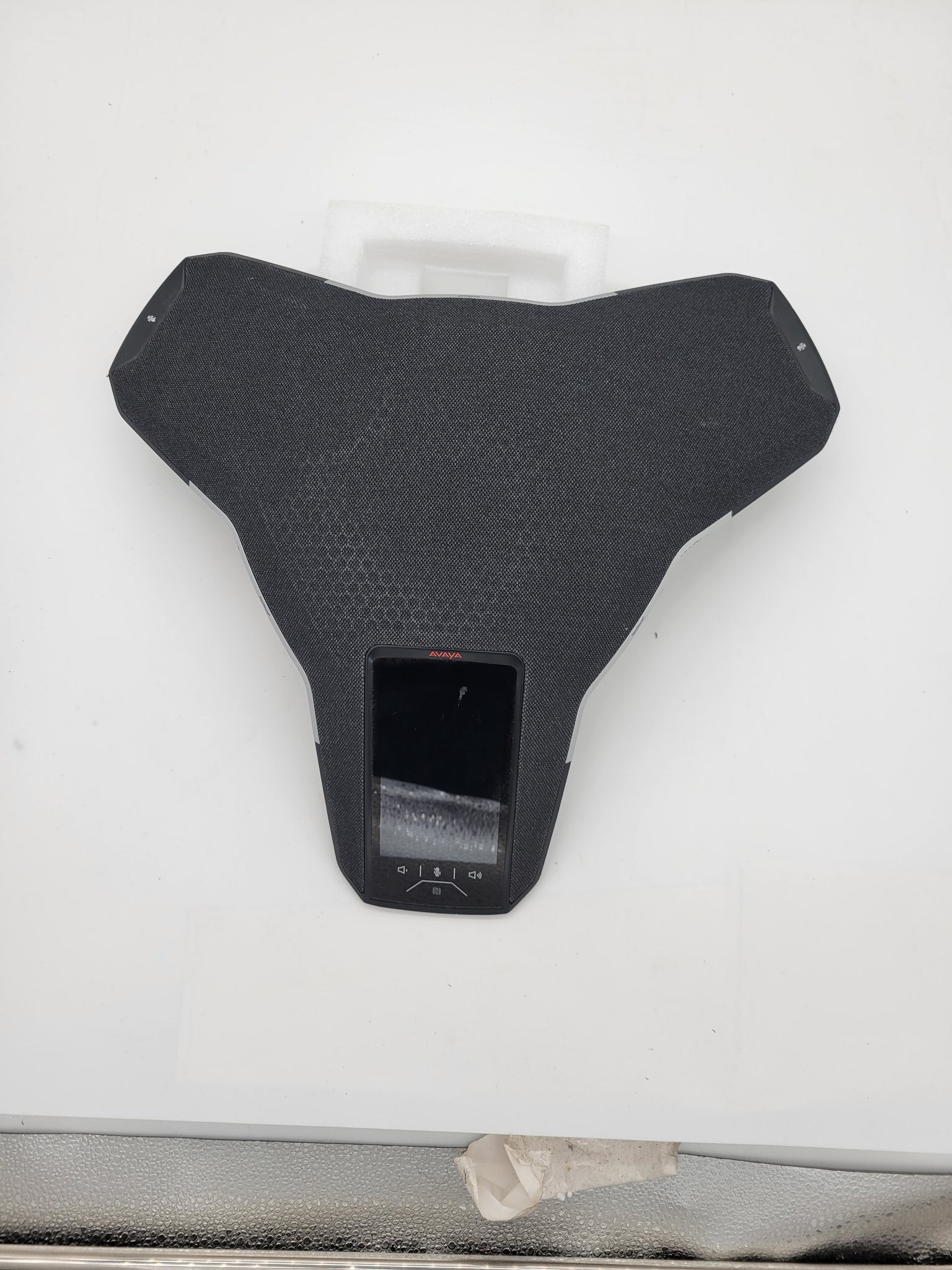

BRAND: AVAYA
MODEL: B199 CONFERENCE PHONE
PRODUCT ID: 700514246
COLOR: BLACK
CONDITON: USED- TESTED WORKES AS EXPECTED

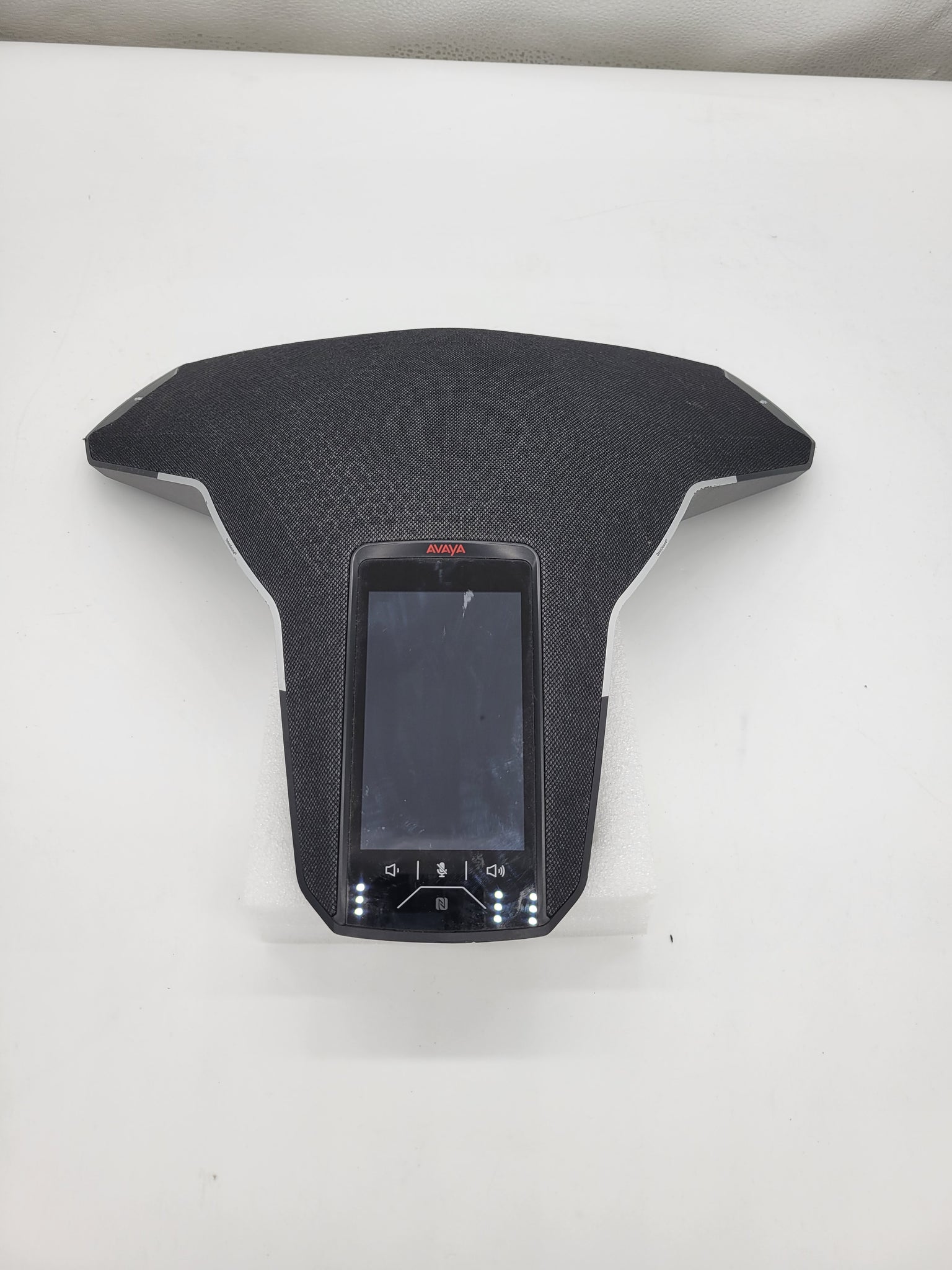

SMALL SCRATCH ON SCREEN (SCREEN IS FULLY FUNCTIONAL)
NO POWER SUPPLY (P.O.E. INJECTOR)
Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Simple and powerful conferencing solution that brings crystal clear sound and one touch meeting entry to conference rooms of all sizes.
Simple and powerful conferencing solution that brings crystal clear sound and one touch meeting entry to conference rooms of all sizes.
Features and Benefits
Crystal Clear Sound: OmniSound® audio technology guarantees clear transmission during meetings, so you and your team don’t miss any part of the discussion. Full Duplex transmits and receives sound simultaneously to prevent audio clipping; 360° surround sound and powerful speakers optimize audio pick-up and broadcasting. Noise suppression filters cut static background noise and an equalizer lets you adjust pitch to suit your preference.
Award-winning design: The Avaya Conference Phone B199 received the coveted Red Dot Award for its product design. Offering remarkable flexibility to suit any conferencing audio needs, it delivers a breakthrough intuitive interface, can be daisy-chained with three devices and also provides several options for easy device management and auto provisioning.
Good Things Come in Unique Packages: Easily expand the coverage of the B199 with available add-on smart microphones. There is OmniSound® audio technology, beamforming technology and the support of digital MEMS microphones on the conference phone. In addition, the full duplex, echo cancellation, and noise suppression technology has been enhanced. Beamforming technology makes the speakers sound closer to the conference phone, helping make conversations more natural and conference participants heard better. It also provides greater freedom of movement without the loss of sound quality, such as when someone moves to the whiteboard. Each B199 combines three digital microphones which are effective with up to 20 meeting participants. Adding two Avaya Smart Microphones expands the microphone range to 750 Square Feet (70 m2). For larger rooms, up to 970 Square Feet (90 m2), it is possible to connect up to three B199 units in a daisy-chain. In this kind of deployment, one device acts are the master, and the other two as additional speakers and microphones. Daisy chain connections are as simple as connecting the daisy-chain cables between units.
Improved and personal user experience within the conference room
The Avaya® Conference Assistant App provides an easy way to control the conference phone, right at the tip of your fingers using your mobile device – tablet or smartphone. There is no need to reach over to the conference phone and scheduled conference calls can be joined as easily as a single touch. Your mobile device becomes a natural extension of your conference phone.
Dimensions 326x370x75mm (WxLxH) 12.8”x14.6”x3” (WxLxH) Weight 1.4 kg 3.1 lbs
Color Black
PoE IEEE 802.3af/at (Class 4) Adapter Optional
PoE Injector accessory available
User Interface

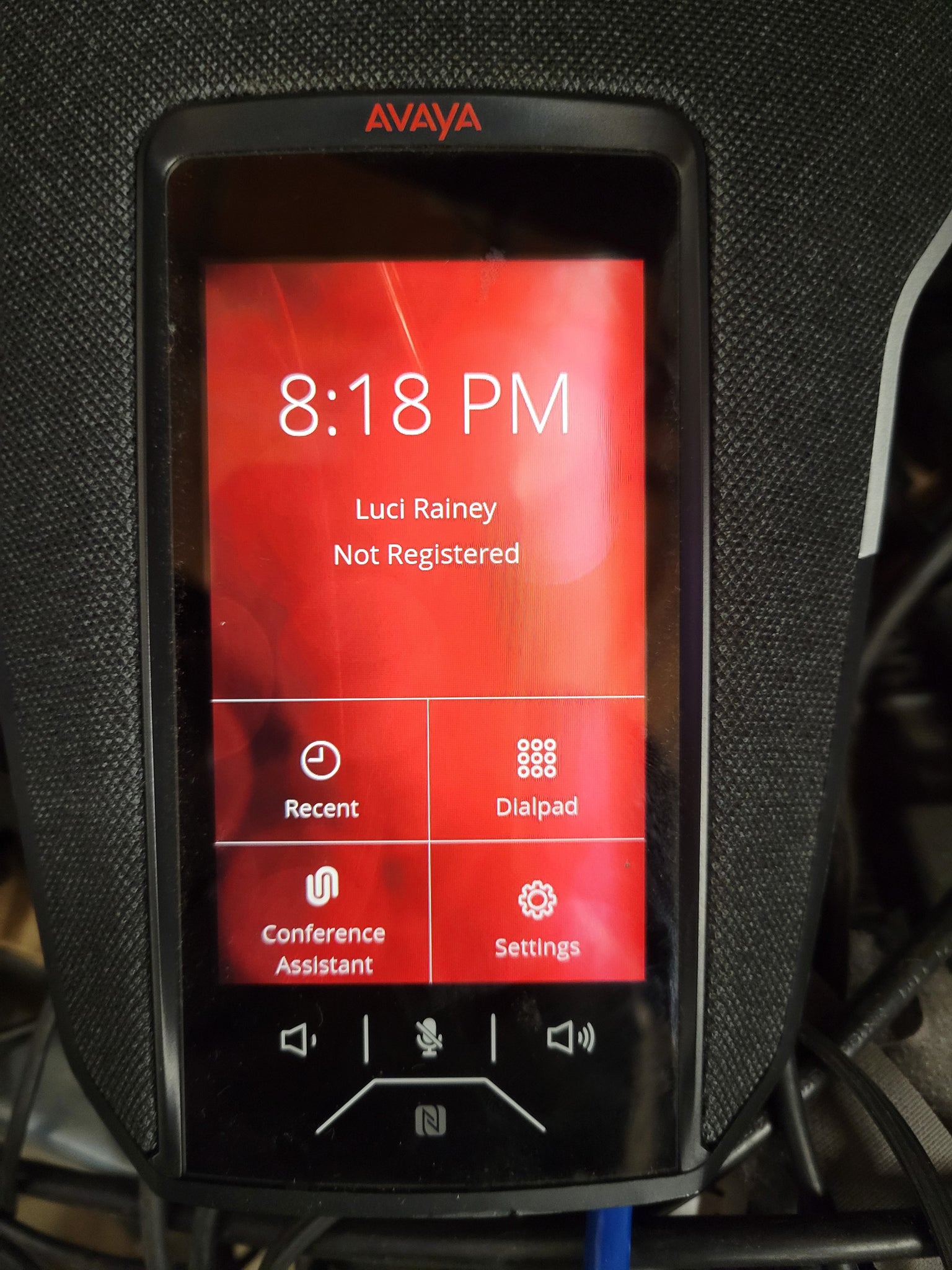

Display 4.3”, 480x800, capacitive touch screen Buttons two volume touch buttons, three mute touch buttons Status indication Dual color LED (green/red) for off hook, mute, hold status Mobile App Avaya® Conference Assistant. Free download from Apple AppStore and Google Play Menu languages Conference phone User Interface in: English, French, Spanish, Portuguese, German, Simplified Chinese, Italian, Swedish, Norwegian, Finnish, Dutch and Danish Web UI English Avaya® Conference Assistant App English, French, Spanish, Portuguese, Russian, German, Korean, Japanese, Chinese (traditional and simplified), Italian, Turkish, Swedish, Norwegian, Finnish, Polish, Dutch, Czech and Danish
Call Features
Conference/split/hold/private, call waiting, local five-way conferencing, calling line ID Directory Call history
Connectivity

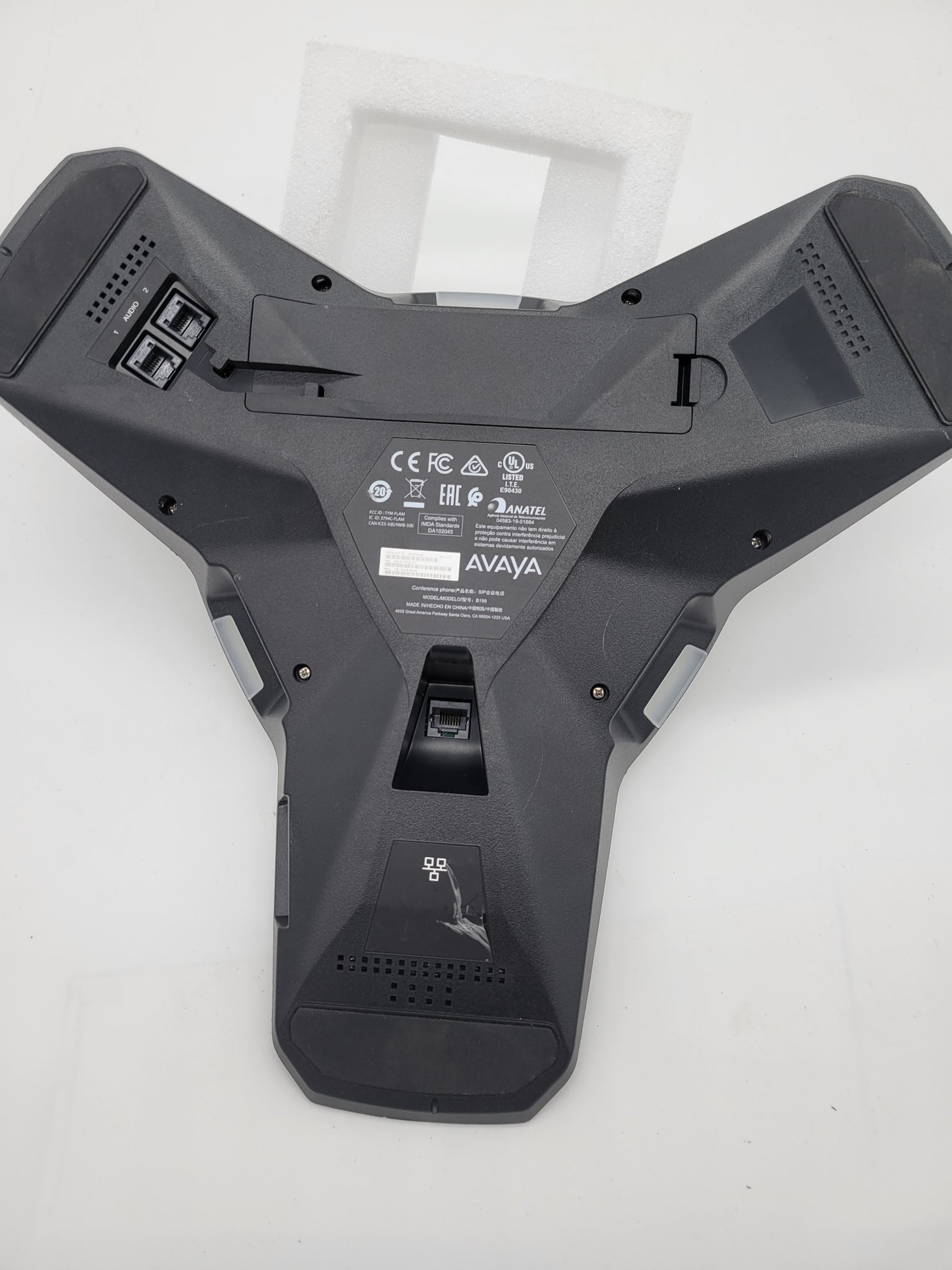

Ethernet 1 x Ethernet 10/100/1000Mbps, PoE IEEE 802.3af/at with 802.3at recommended. (optional power adapter available) USB 1 x USB 3.0 host Type-A, 1 x USB 3.0 device Micro-B Bluetooth® Bluetooth LE, Bluetooth Classic and NFC supported Expansion 2 x audio expansion ports (RJ11)
Network
Protocol SIP 2.0 (RFC 3261 and associated RFCs). Note: NOT Avaya Aura SIP-AST Signaling UDP, TCP, TLS, and SIPS Media protocol RTP, SRTP Network addressing DHCP and static IP NAT NAT traversal STUN, ICE and TURN Security 802.1x authentication with EAP-TLS Quality of Service DiffServ, VLAN (IEEE 802.1p/Q) DTMF tone generation RFC 4733/2833, SIP INFO, In-band Time server NTP, SNTP (RFC 4330) Additional Features PCAP-log, unique host name, LLDP
