BRAND: ARRIS
CONDITION: USED- TESTED WORKS AS EXPECTED
COMES WITH POWER SUPPLY

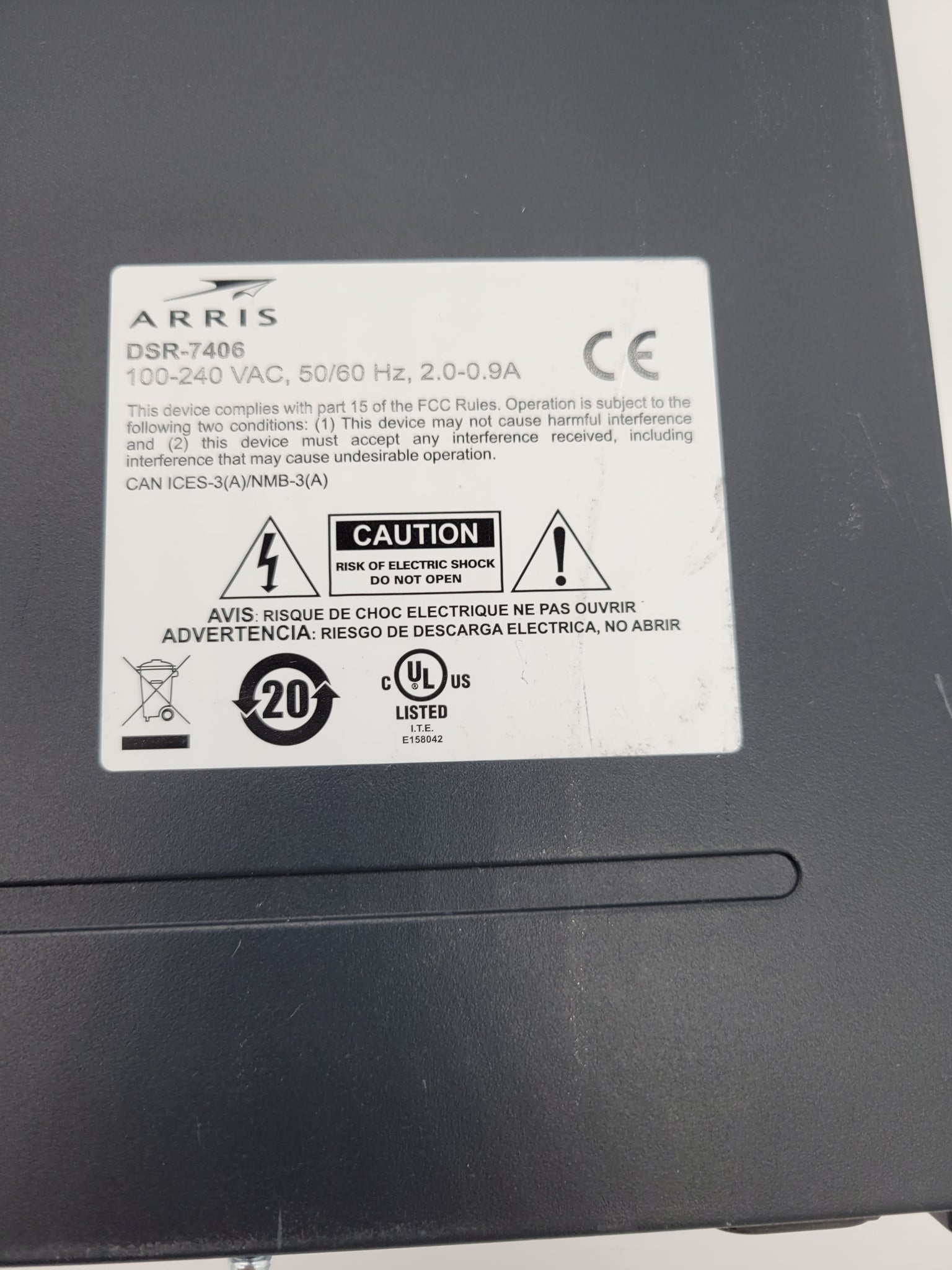

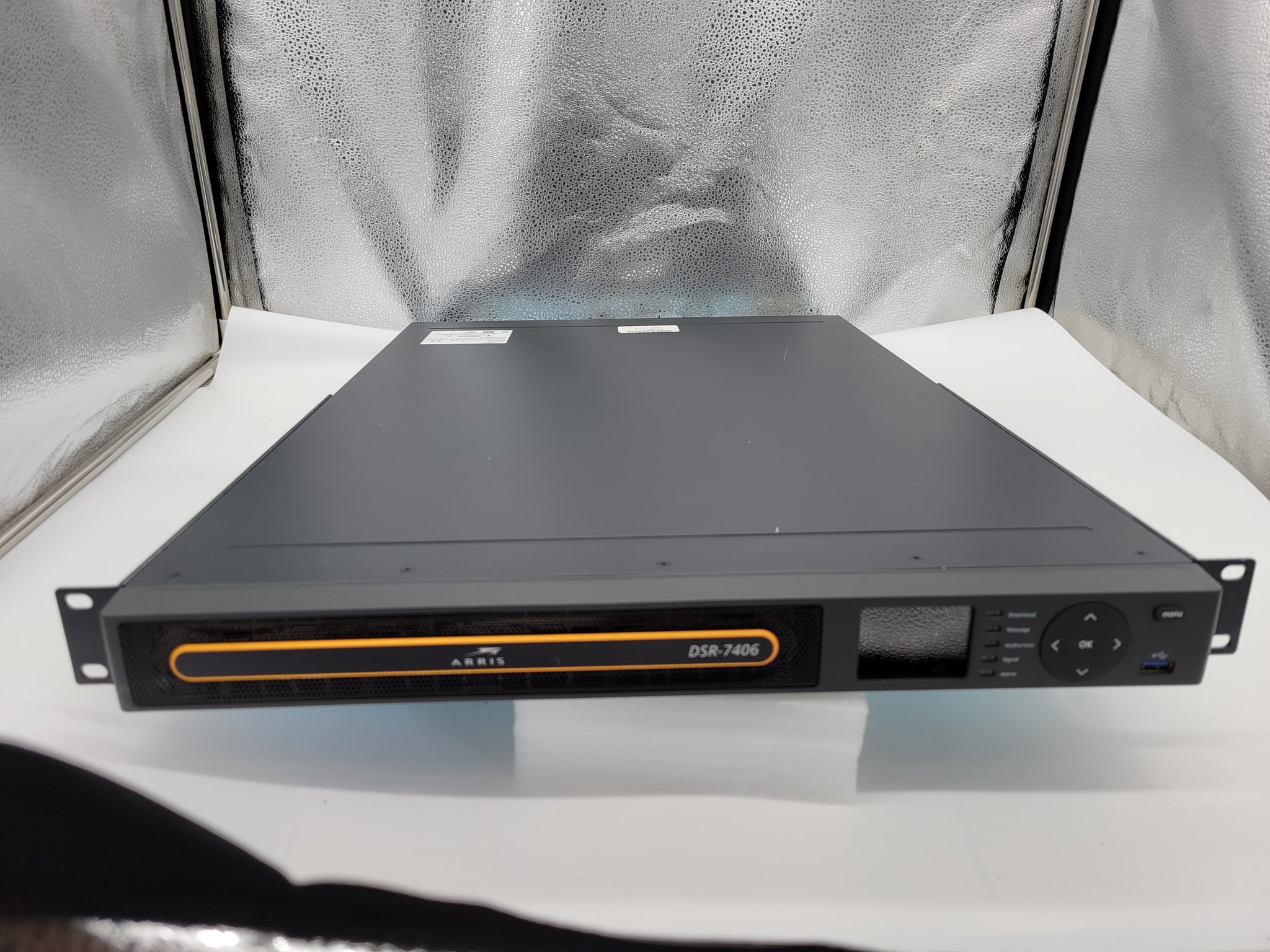

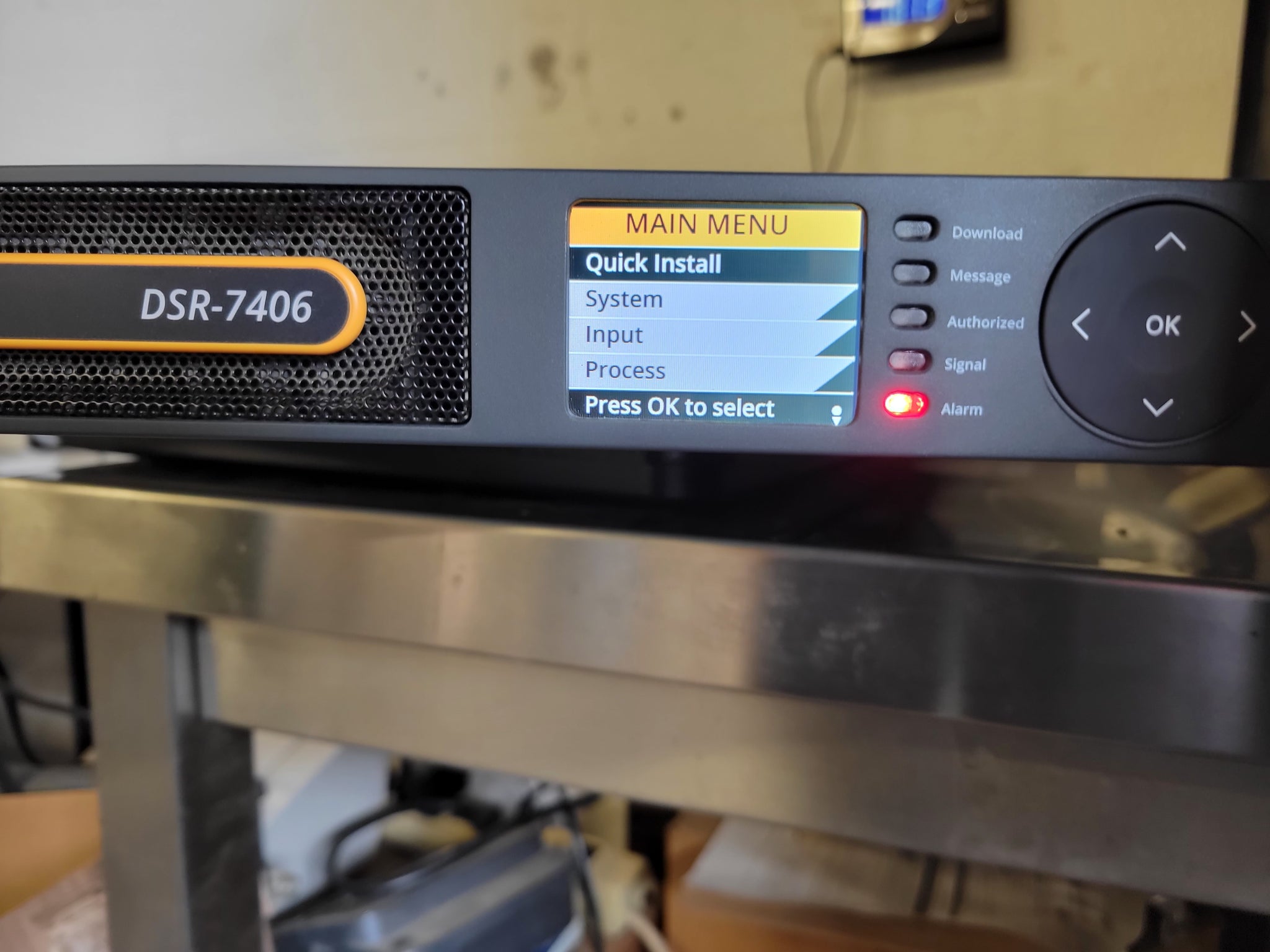

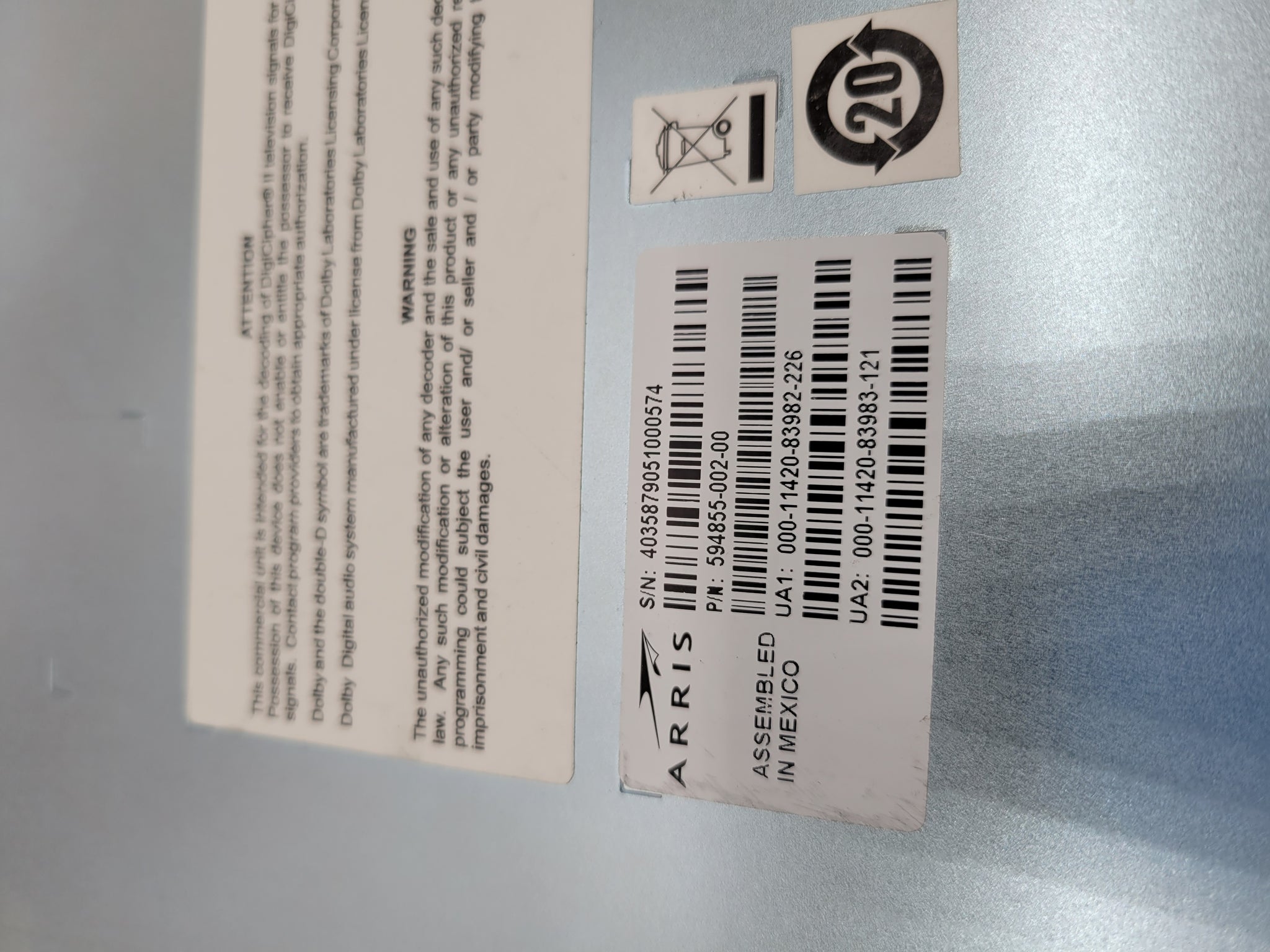

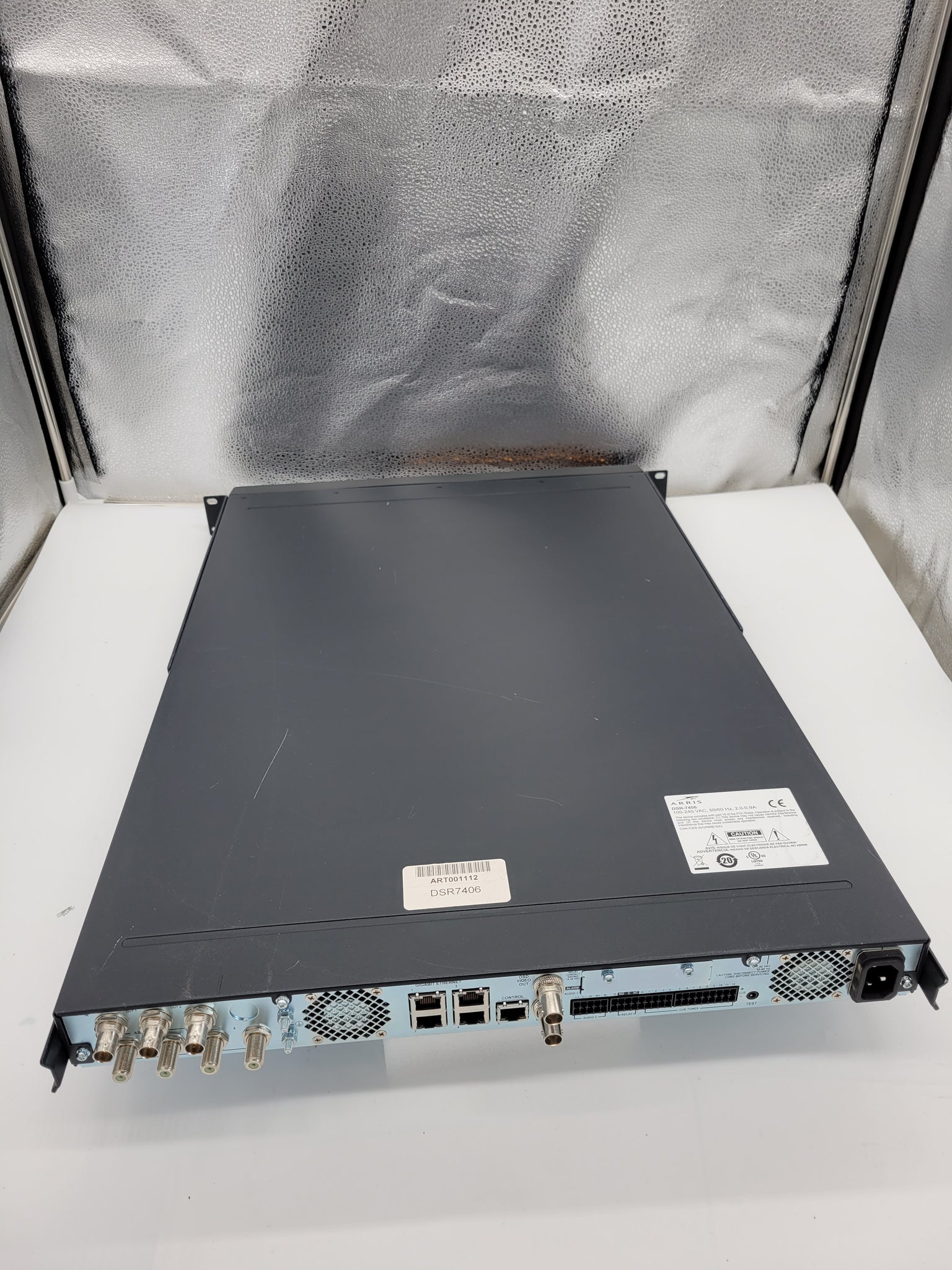

MODEL: DSR-7406
“R2V3 Functionality and Cosmetic rating is F3/C4 for this product, Key functions working and used good condition.”
PRODUCT OVERVIEW arris.com © 2019 ARRIS Enterprises, LLC. All rights reserved. The DSR-7400 HD Series is ARRIS’s next generation commercial satellite receiver/transcoder platform engineered for costeffective ultra high density transcoding. Available models include the DSR-7403 with capacity for 3 HD and 3 SD transcoded outputs, DSR-7406 with capacity for 6 HD and 6 SD transcoded outputs and DSR-7412 with capacity for 12 HD and 12 SD transcoded outputs. Support for HEVC and MPEG-4 video compression inputs combined with DVB-S2, DVB-S2x and 8PSK Turbocode demodulation enables full compatibility with the latest satellite distribution networks. The flexibility offered by 4 active RF tuners with retune capability simplifies satellite network design and permits trouble-free network modifications. The DSR-7400 HD Series comes equipped with industry standard input and output interfaces such as dual GigE and ASI that enable seamless connections to headend equipment. The density of the DSR-7400 HD Series creates both headend rack space and power consumption savings compared to traditional single-channel transcoding receivers.
DSR-7400 HD Series Commercial Integrated Satellite Receiver Ultra High Density HD/SD Transcoder KEY FEATURES • DSR-7403 provides 6 transcoded output services (3 HD and 3 down-converted SD) • DSR-7406 provides 12 transcoded output services (6 HD and 6 down-converted SD) • DSR-7412 provides 24 transcoded output services (12 HD and 12 down-converted SD) • Simultaneously receives transport streams from up to 4 satellite transponders (single Programmer) • Dual Gig-E and ASI transport inputs and outputs • HEVC and MPEG-4 video input up to 4K resolution • MPEG-2 and MPEG-4 HD and SD video outputs • Fully configurable Statistical Multiplex output for both HD and SD services • Front panel confidence monitor • Advanced Modulation support with DVB-S2 8PSK, DVB-S2x 8PSK and 16APSK and 8PSK Turbocodes • 4 RF inputs (L-Band) • Configurable DCII subtitle overlay on transcoded video output • Decryption and pass-through of input video services • DigiCipher® II conditional access control • Gig-E port web browser monitoring and control • SNMP monitoring • One RU design for rack space savings • Low power consumption provides operational cost savings
SPECIFICATIONS L-Band Input Input Frequency 950 - 2150 MHz Input Impedance 75 Ω Input Connectors Four (4) F-type LNB Power Out 16V DC min/450 mA Port-to-Port Isolation 40 db (minimum) Digital Processing Modulation Modes DVB-S2, DVB-S2x and 8PSK Turbocodes Symbol Rates DVB-S2/8PSK 3 to 35 Msps DVB-S2x/16APSK 3 to 35 Msps 8PSK Turbocodes 1 to 30 Msps FEC Rates DVB-S2/8PSK 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 DVB-S2x/16APSK 26/45, 3/5, 28/45, 23/36, 25/36, 13/18, 7/9, 77/90 8PSK Turbocodes 2/3 (1.92), 3/4 (2.05), 3/4 (2.11), 3/4 (2.19), 5/6 (2.30), 8/9 (2.40) Transcoder Inputs Compression Formats HEVC and MPEG-4 HD Resolution 1080i60, 720p60 and 1080p23.98 SD Resolution 528x480i , 544x480i, 704x480i and 720x480i Transcoder Outputs Compression Formats MPEG-4 and MPEG-2 HD Resolution 1080i60, 720p60 SD Resolution 528x480i , 544x480i, 704x480i and 720x480i Aspect Ratio Conversion (HD down-conversion) 4x3 center-cut, 4x3 letterbox, 14:9 and 16:9 (Anamorphic) © 2019 ARRIS Enterprises, LLC. All rights reserved. DSR-7400 HD Series Commercial Integrated Satellite Receiver Ultra High Density HD/SD Transcoder SPECIFICATIONS (CONTINUED) Composite Video Output (Monitoring only except 1 service on DSR-7403) Frequency Response (NTSC) ±0.9 dB, 1kHz–4.2 MHz Output Impedance 75 Ω Output Level 1.0 V p-p ± 10% Connectors Two BNC Audio Passthrough (2 streams per service) Compression Formats Dolby AC-3 and MPEG-1 Audio Layer II Audio Output (Monitoring only except 1 service on DSR-7403) Compression Formats Dolby AC-3 and MPEG-1 Audio Layer II Output Two stereo pair or four mono Frequency Response 1.0 dB p-p maximum, 20 Hz to 20 kHz Audio Impedance 600 Ω load Peak Audio Level ±20.0 dBu ± 1.0 dB Connectors Quick disconnect spring cage plug connector Ethernet Management Port Connector (quantity 1) RJ-45 Format 10/100/1000BaseT GigE Input/Output Interface Connector (quantity 4) RJ-45 (two out, two in) GigE input not currently supported Format 10/100/1000BaseT ASI Input/Output Interface Format Asynchronous Serial Interface Transmission Byte or packet mode Standard CENELEC EN 50083-9 Connectors BNC (two out, one in) Contact Closures/Cue Tones Number of Contact Closures One (alarm) Contact Closure Type Form C Number of Cue Tone Outputs 12 Physical Width 19.0 in (48.3cm) Depth 24.9 in (63 cm) Height 1.75 in (4.4cm) Weight DSR-7403 17.6 lb (8 kg) DSR-7412 20.9 lbs. (9.5 kg) Power Input 100-240 VAC, 50-60Hz, 100W max Operating Temperature 0 °C to 40 °C Humidity 95% relative maximum Display 2.2” color LCD
DSR-7406 614826-001-00 6 channel commercial IRD/Transcoder shipped with 4 transcoding licenses and capacity to license up to 2 additional HD/SD output transcoding channels.
